139M4

Insert Design Part No.: 139M4 Thread Size: M4 Pitch (internal): 0.70 Pitch (external) P: 1.27 Diameter (external) B: 6.31 Length L: 5.60 Hole Design Hole Diameter C: 5.8-6.1 Hole Depth Y: 6.2 Boss Diameter X: 10.7 Wall Thickness W: 2.30

145M4

Insert Design Part No.: 145M4 Thread Size: M4 Pitch (internal): 0.70 Pitch (external) P: 1.27 Diameter (external) B: 6.31 Length L: 5.60 Hole Design Hole Diameter C: 5.8-6.1 Hole Depth Y: 6.2 Boss Diameter X: 10.7 Wall Thickness W: 2.30

001M4

Insert Design Part No.: 001M4 Thread Size: M4 Pitch (internal): 0.70 Length L: 8.5 Hole Design Hole Diameter C: 5.4-5.9 Hole Depth Y: 8.60 Boss Diameter X: 10.90 Wall Thickness W: 2.50

002M4

Insert Design Part No.: 002M4 Thread Size: M4 Pitch (internal): 0.70 Length L: 5.60 Hole Design Hole Diameter C: 5.4-5.9 Hole Depth Y: 5.8 Boss Diameter X: 10.9 Wall Thickness W: 2.50

003M4

Insert Design Part No.: 003M4 Thread Size: M4 Pitch (internal): 0.70 Head Thickness T: 0.75 Head Diameter D: 8.70 Length L: 8.50 Hole Design Hole Diameter C: 5.4-5.9 Hole Depth Y: 8.60 Boss Diameter X: 10.90 Wall Thickness W: 2.50

071M4

Insert Design Part No.: 071M4 Thread Size: M4 Pitch (internal): 0.70 Head Thickness T: 0.75 Head Diameter D: 7.10 Length L: 8.50 Hole Design Hole Diameter C: 5.4-5.9 Hole Depth Y: 8.60 Boss Diameter X: 10.90 Wall Thickness W: 2.50

004M4

Insert Design Part No.: 004M4 Thread Size: M4 Pitch (internal): 0.70 Head Thickness T: 0.75 Head Diameter D: 8.70 Length L: 5.60 Hole Design Hole Diameter C: 5.4-5.9 Hole Depth Y: 5.80 Boss Diameter X: 10.90 Wall Thickness W: 2.50

072M4

Insert Design Part No.: 072M4 Thread Size: M4 Pitch (internal): 0.70 Head Thickness T: 0.75 Head Diameter D: 7.10 Length L: 5.60 Hole Design Hole Diameter C: 5.4-5.9 Hole Depth Y: 5.80 Boss Diameter X: 10.90 Wall Thickness W: 2.50

005M4

Insert Design Part No.: 005M4 Thread Size: M4 Pitch (internal): 0.70 Head Thickness T: 1.50 Head Diameter D: 8.70 Length L: 8.50 Hole Design Hole Diameter C: 5.4-5.9 Hole Depth Y: 8.60 Boss Diameter X: 10.90 Wall Thickness W: 2.50

006M4

Insert Design Part No.: 006M4 Thread Size: M4 Pitch (internal): 0.70 Head Thickness T: 1.50 Head Diameter D: 8.70 Length L: 5.60 Hole Design Hole Diameter C: 5.4-5.9 Hole Depth Y: 5.80 Boss Diameter X: 10.90 Wall Thickness W: 2.50

073M4

Insert Design Part No.: 073M4 Thread Size: M4 Pitch (internal): 0.70 Head Thickness T: 1.50 Head Diameter D: 7.10 Length L: 5.60 Hole Design Hole Diameter C: 5.4-5.9 Hole Depth Y: 5.80 Boss Diameter X: 10.90 Wall Thickness W: 2.50

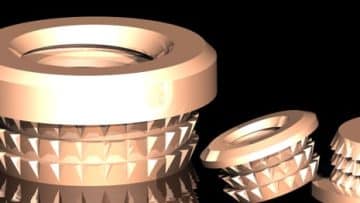

0006M4

Insert Design Part No.: 0006M4 Thread Size: M4 Pitch (internal): 0.70 Barbs (no. of rows):  3 Head Thickness T: 1.00 Head Diameter D: 7.90 Length L: 3.00 Hole Design Hole Diameter C: 6.13 Hole Depth Y: 3.20 Counter Sink B (+0.10): 0.25

118M4

Insert Design Part No.: 118M4 Thread Size: M4 Pitch (internal): 0.70 Dia (external) B (± 0.25): 5.90 Bolt Engagement E (min): 7.05 No. of Full Threads: 6.80 Counter Bore S: 1.60 Length L (± 0.25): 10.300 Pin Design Length G: (+0.0/-0.25) 5.00 Diameter H: 3.30 Lead K: 0.35 Shoulder Angle J: 2°15’ Shoulder Dia. F: [...]

117M4

Insert Design Part No.: 117M4 Thread Size: M4 Pitch (internal): 0.70 Dia (external) B (± 0.25): 5.90 Length L (± 0.05): 7.125 Pin Design Length G: (+0.0/-0.25) 6.80 Diameter H: 3.30 Lead K: 0.85 Pin Design øH tolerances up to 5mm ø -0.05 to -0.075 over 5mm ø -0.1 to -0.125

116M4

Insert Design Part No.: 116M4 Thread Size: M4 Pitch (internal): 0.70 Dia (external) B (± 0.25): 5.90 Bolt Engagement E (min): 5.45 No. of Full Threads: 7.00 Length L (± 0.25): 8.700 Pin Design Length G (+0.0/-0.25): 5.80 Diameter H: 3.30 Lead K: 0.85 Pin Design øH tolerances ± 0.0125
